Secondhand machines and plants
CONVEYOR BELT INDUSTRIAL WASHING MACHINE MOD 530
CONSTRUCTION YEAR 2021 S/N 02-21
STATUS: LIKE NEW
CONSTRUCTION MATERIAL:
- INSIDE FRAME IN STAINLESS STEEL
- STAINLESS STEEL CONVEYOR BELT
- STAINLESS STEEL BASEMENT
- STAINLESS STEEL MECHANICAL MATERIAL
CONVEYOR BELT: WIDTH 300 mm
CYCLE:
- WASHING - BLOWING – RINSING – BLOWING - BLOWING
POWER: 3 X 400 V 50 Hz _AUX 24 V AC
ELECTRIC HEATING
PRODUCER: CABER IMPIANTI

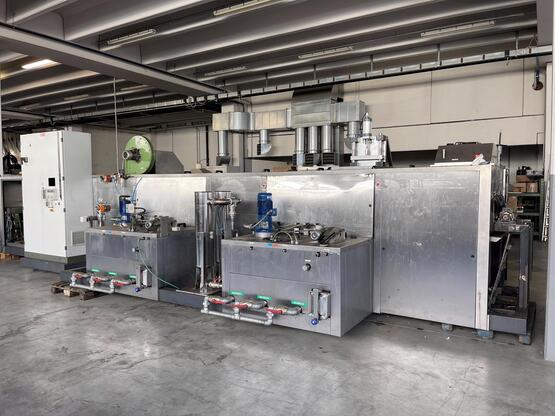

HIGH PRESSURE STEP BY STEP INDUSTRIAL WASHING MACHINE
CONSTRUCTION YEAR 2000 ABOUT
STATUS: TO BE REVAMP
CONSTRUCTION MATERIAL:
- INSIDE STAINLESS STEEL
- OUTSIDE STAINLESS STEELT
CYCLE:
- WASHING – RINSING – BLOWING - DRYING
POWER 3 X 400 V 50 Hz _ AUX 24 V AC
ELECTRIC HEATING
PRODUCER: UNKNOW
DRUM INDUSTRIAL WASHING MACHINE MOD. 340/S-MLD
CONSTRUCTION YEAR 2024 S/N 38/24
STATUS: NEW
CONSTRUCTION MATERIAL:
- STAINLESS STEEL FRAME
- DRUM IN PP
DRUM: D. 400 mm _ HOLES D.10mm _ SPIRAL PITCH 200 mm
CYCLE:
- WASHING – RINSING - DRYING
POWER: 3 X 400 V 50 Hz _AUX 24 V AC
ELECTRIC HEATING
ACCESSORIES: OIL SKIMMER DISK
PRODUCER: CABER IMPIANTI
CABINET INDUSTRIAL WASHING MACHINE 313/S-IMM
CONSTRUCTION YEAR 2024 – S/N 04/24
STATUS: NEW
CONSTRUCTION MATERIAL:
- STAINLESS STEEL FRAME
- STAINLESS STEEL MECHANICAL MATERIAL
BASKETS DIMENSIONS: 450 X 300 X 200 h
CYCLE:
- DEGREASING , SPRAY + IMMERSION
- RINSING, SPRAY + IMMERSION
- DRYING
ELECTRIC CABINET WITH PLC S7 1200 E PANNELLO KTP 300
ELECTRIC HEATING
PRODUCER: CABER IMPIANTI
TUMBLING INDUSTRIAL WASHING MACHINE MOD. 360
CONSTRUCTION YEAR 2000 (ABOUT)
STATUS: USED AND AND REVAMPED
CONSTRUCTION MATERIAL:
- INTERNAL IN MILD STEEL
- EXTERNAL IN PAINTED MILD STEEL
- DRUMS IN STAINLESS STEEL
DRUMS: HOLES 2 mm - LOAD VOLUME 150 LT
CYCLE:
- WASHING – RINSING – DRYING
ELECTRIC CABINET WITH PLC S7 1200 E KP 300
POWER 3 X 400 V 50 Hz _AUX 24 V AC
ELECTRIC HEATING
PRODUCER: UNKNOWN

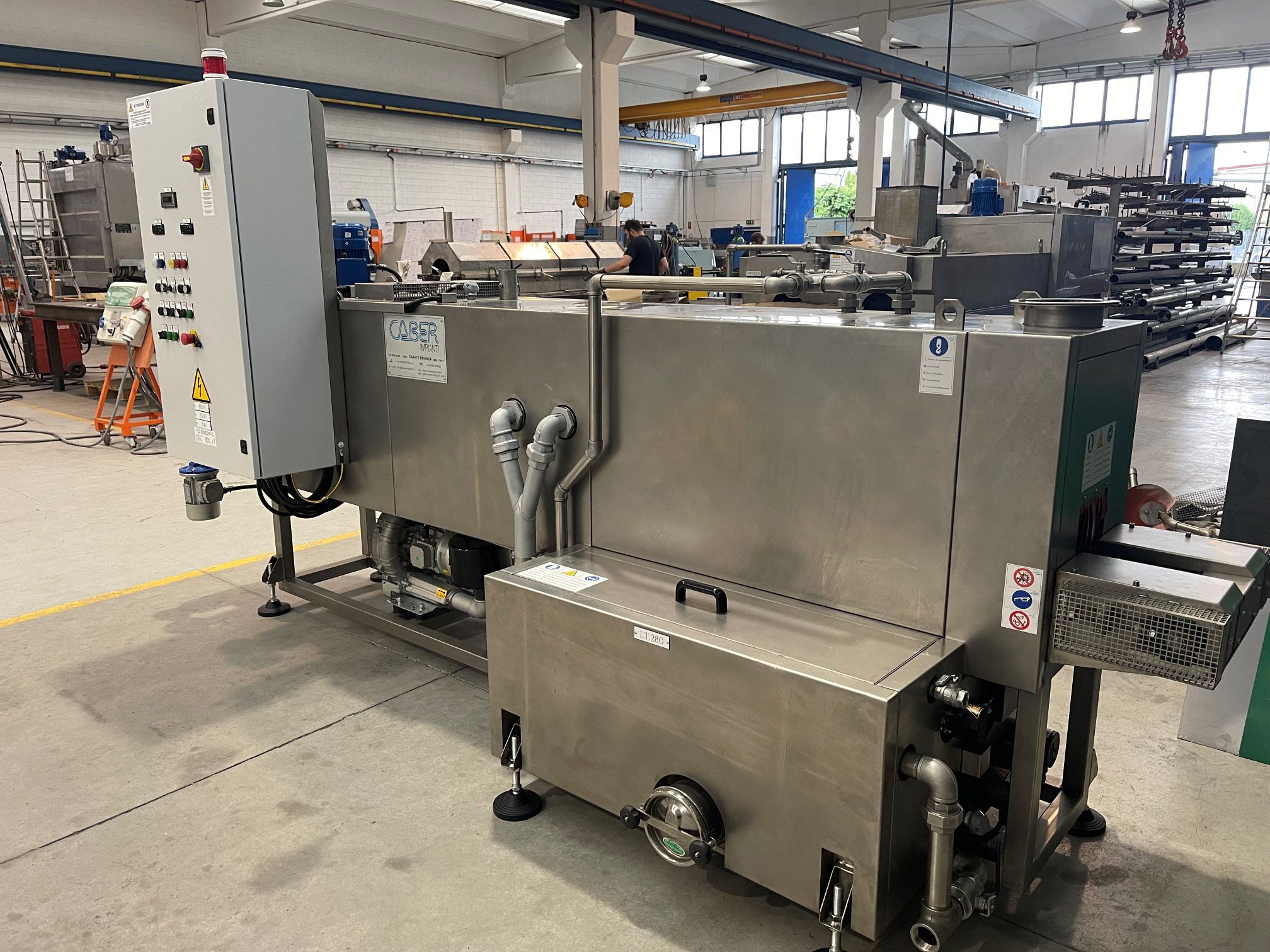

CONVEYOR BELT INDUSTRIAL WASHING MACHINE MOD 315
CONSTRUCTION YEAR 2005-24 S/N 16-24
STATUS: RECONDITIONED
CONSTRUCTION MATERIAL:
- INSIDE FRAME IN STAINLESS STEEL
- STAINLESS STEEL CONVEYOR BELT
- STAINLESS STEEL BASEMENT
- CARBON STEEL MECHANICAL MATERIAL
CONVEYOR BELT: WIDTH 139 mm
CYCLE:
- WASHING - BLOWING - DRYING
POWER 3 X 400 V 50 Hz _AUX 24 V AC
ELECTRIC HEATING
PRODUCER: CABER IMPIANTI
BOOTH DIPPING WASHING PLANT MOD. 313/S
YEAR OF CONSTRUCTION 2017 – S/N 10/17
STATUS: SECOND HAND GOOD CONDITION – TO BE RECONDITIONED
CONSTRUCTION: AISI 304 STAINLESS STEEL
CYCLE:
- DEGREASING - RINSING - DRYING
BASKET FOR PIECES IN STAINLESS STEEL USEFUL SIZE L=500xP=300 x 200h (mm)
ELECTRICAL HEATING
INSTALLED POWER 36kW
FEEDING: 3 X 400 V 50 Hz _ AUX 24 V AC
ACCESSORIES: PLC AND CONTROL PANEL – OIL SEPARATOR
PRODUCER: CABER IMPIANTI
SUITABLE TO CLEAN FITTINGS, SMALL METAL PARTS or PIECES POSITIONED IN PROPER BASKETS
CHAIN WASHING MACHINE WITH BASKETS FOR PIECES MOD 570/T
CONSTRUCTION YEAR 2010 – S/N 106/10
CONDITION: USED IN GOOD CONDITION - TO BE REVAMPING
CONSTRUCTION MATERIAL:
- INTERNAL IN STAINLESS STEEL AISI 304
- EXTERNAL AISI 304 + POLYCARBONATE
CYCLE:
- DEGREASING + BLOWING + RINSING + DEMINERALIZED RINSING + BLOWING + DRYING
BASKETS DIMENSIONS: L=600 x P=75 x 710h (mm)
ELECTRIC HEATING
FEEDING: 3 X 400 V 50 Hz _ AUX 24 V AC
ACCESSORIES: PLC AND OPERATOR PANEL – VAPOURS EXHALATION FAN
MANUFACTURER: CABER IMPIANTI
NOTE: SUITABLE FOR SHEETS, TRAYS AND PLATES CLEANING. BASKETS CAN BE CUSTOMIZED
CAROUSEL WASHING MACHINE MOD 4120
YEAR OF CONSTRUCTION 2004 S/N 54/04
STATUS: USED AND RECONDITIONED
CONSTRUCTION MATERIALS:
- INSIDE STAINLESS STEEL
- OUTSIDE STAINLESS STEEL
- MECHANICAL MATERIAL STAINLESS STEEL
CYCLE: WASHING – RINSING - BLOWING - DRYING
ELECTRICAL CUPBOARD TO BE PERFORMED
ELECTRIC HEATING
PRODUCER: CABER IMPIANTI
CHAMBER FURNACE MOD 1100
YEAR OF CONSTRUCTION 2013 - S/N 55/13
STATUS: USED, IN GOOD CONDITION
Construction Materials:
- CARBON STEEL RAL 7001 INSIDE
- CARBON STEEL RAL 7001 OUTSIDE
TREATMENT CHAMBER L=4950 x P=1200 x 1000h (mm)
ELECTRICALLY HEATING 36 KW
Feeding: 3 X 400 V 50 Hz
TOT. POWER INSTALLED: 40 KW
ELECTRIC CUPBOARD COMPLETE WITH PLC S7 1200 & COLOR TP MP277B
Working Temperature: 150°C
Manufacturer: Caber Impianti srl
CHAMBER FURNACE MOD 140/350
YEAR OF CONSTRUCTION 2013
STATUS: NEW)
Construction Materials:
- CARBON STEEL RAL 7001 INSIDE
- CARBON STEEL RAL 7001 OUTSIDE
CHAMBER: L=1000 x P=500 x 500h (mm)
ELECTRICALLY HEATED
Feeding: 3 X 400 V 50 Hz
POWER: 9.5 Kw
WORKING TEMPERATURE: 180°C
Manufacturer: Caber Impianti srl
TURNING SATELLITES WASHING MACHINE MOD 210
YEAR OF CONSTRUCTION 2009 S/N 75/09
STATUS: NEW)
Construction Materials:
- Stainless Steel inside
- Stainlees Steel outside
CYCLE: WASHING – BLOWING
POWER 3 X 400 V 50 Hz _ AUX 24 V AC
Power installed: 23 Kw
ELECTRICALLY HEATED TANK
Manufacturer: Caber Impianti srl
Booth Washing Machine
CONSTRUCTION YEAR: 1998
STATUS: USED and FUNCTIONING
Construction Materials:
- Stainless Steel AISI 304 inside
- PAINTED CARBON STEEL OUTSIDE
Basket 600x400x300 h
Cycle: washing
Feeding 3 X 400 V 50 Hz
TOT POWER INSTALLED: 15 KW
PRODUCER: MAFAC (GERMANY)
